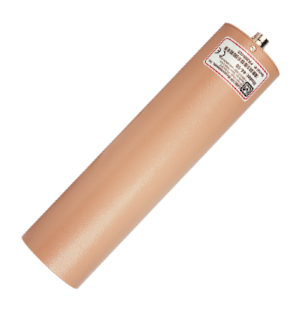

Model 44-10 Gamma Scintillator

The Model 44-10 is a 2" X 2" NaI(Tl) Gamma Scintillator that can be used with several different instruments including survey meters, scalers, ratemeters, and alarm ratemeters

PART NUMBER:47-1540

INDICATED USE: High energy gamma detection
SCINTILLATOR: 2" (5.1 cm) diameter X 2" (5.1 cm) thick sodium iodide (NaI)Tl scintillator
SENSITIVITY: Typically 900 cpm/microR/hr (Cs-137)
ENERGY RESPONSE: Energy dependent
COMPATIBLE INSTRUMENTS: General purpose survey meters, ratemeters, and scalers
TUBE: 2"(5.1cm) diameter magnetically shielded photomultiplier
OPERATING VOLTAGE: Typically 500 - 1200 volts
DYNODE STRING RESISTANCE: 60 megohm
CONNECTOR: Series "C" (others available )
CONSTRUCTION: Aluminum housing with beige polyurethane enamel paint
TEMPERATURE RANGE: -4° F(-20° C) to 122° F(50° C)
May be certified to operate from -40° F(-40° C) to 150° F(65° C)
SIZE: 2.6" (6.6 cm) diameter X 11" (27.9 cm)L
WEIGHT: 2.3 lb (1.1kg)
